| Model | Rated Power | Voltage / Frequency | AirVolume | RPM | Blades | Blade Diameter | Weight |
| HSD-7.3A | 1.5/2.0KW | 110-415V / 50-60Hz | 13800 m3/min = 487342 CFM | 50 | 6 pcs | 7.3M(24') | 179kg |
| HSD-6.1A | 1.5/2.0KW | 110-415V / 50-60Hz | 11200 m3/min = 395524 CFM | 60 | 6 pcs | 6.1M(24') | 170kg |
| HSD-5.5A | 1.1/1.5KW | 110-415V / 50-60Hz | 9200 m3/min = 324894 CFM | 65 | 6 pcs | 5.5M(18') | 160kg |
| HSD-4.6A | 1.1/1.5KW | 110-415V / 50-60Hz | 7600 m3/min = 268391 CFM | 65 | 6 pcs | 4.9M(16') | 152kg |
| HSD-4.3A | 1.1/1.5KW | 110-415V / 50-60Hz | 6000 m3/min = 221888 CFM | 75 | 6 pcs | 4.3M(14') | 147kg |
| HSD-4A | 0.5/0.55KW | 110-415V / 50-60Hz | 4855 m3/min = 171452 CFM | 85 | 6 pcs | 4.0M(13') | 50kg |
| HSD-3.5A | 0.5/0.55KW | 110-415V / 50-60Hz | 3755 m3/min = 132606 CFM | 95 | 6 pcs | 3.5M(11') | 48kg |
| HSD-3A | 0.5/0.55KW | 110-415V / 50-60Hz | 2755 m3/min = 97291 CFM | 105 | 6 pcs | 3.0M(10') | 46kg |
| HSD-2.5A | 0.5/0.55KW | 110-415V / 50-60Hz | 1915 m3/min = 67627 CFM | 115 | 6 pcs | 2.5M(8') | 44kg |

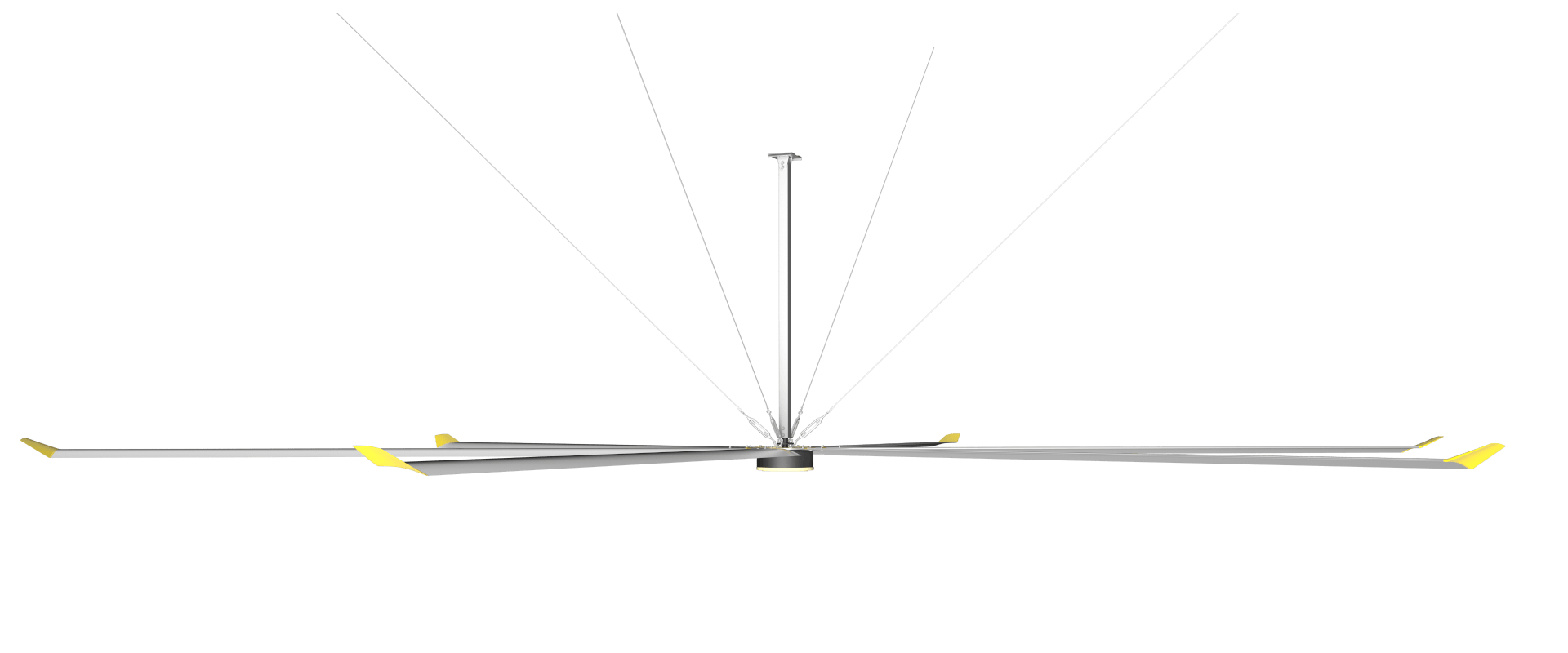

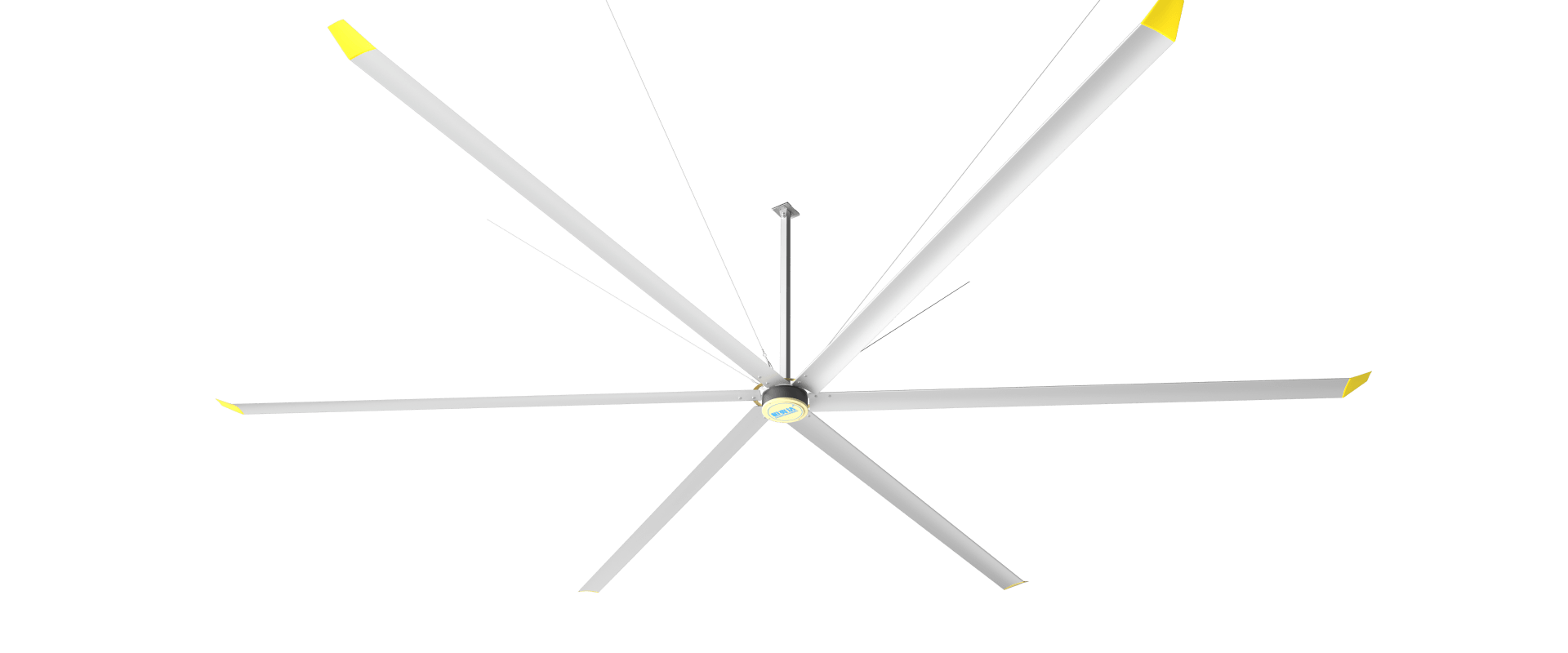

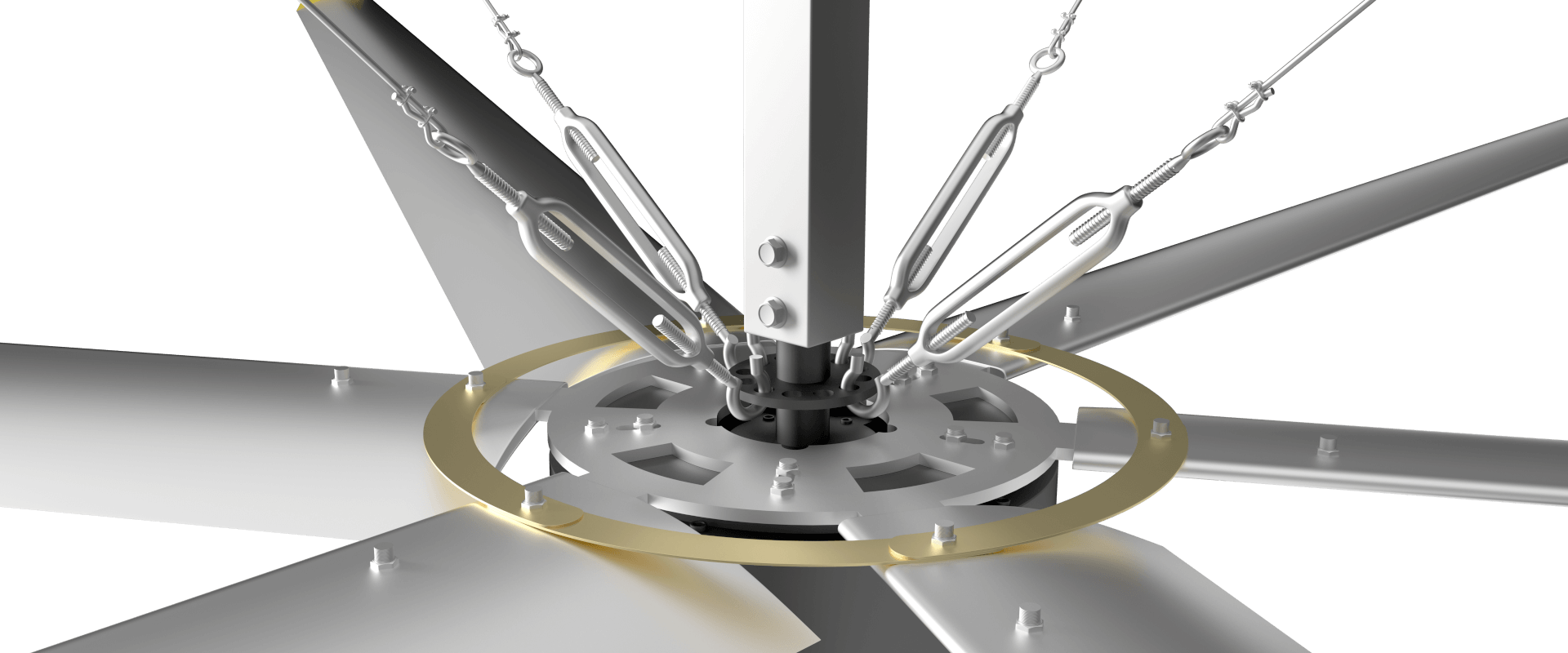

IE4 PMSM Industrial Ceiling Fan
This professionally designed industrial large fan adopts advanced permanent magnet brushless motor technology, providing excellent performance and sustainable operation. Whether it is a large factory, logistics warehouse, agricultural greenhouse, or commercial space. our permanent magnet brushless motor industrial large fan can deliver outstanding cooling effects, offering a comfortable airflow coverage.
The fan's power core is equipped with an IE4 ultra-high efficiency permanent magnet brushless motor. The permanent magnet brushless motor is known for its high efficiency and low noise, ensuring smoother and quieter fan operation. This advanced motor technology has excellent energy conversion efficiency, providing powerful airflow even at lower power, thus saving energy and ensuring long-lasting fan operation.
Application
Manufacturing Areas
Commercial Spaces
Indoor Sports Arenas
Transportation Hubs
Factory workshops, Production lines, Manufacturer, Warehousing facilities
Large shopping malls, Supermarkets and retail stores, Exhibition centers
Sports stadiums, Swimming pools, Indoor sports facilities
Docks and piers, Airport terminals, Train stations and subway stations
Feature
Magnet Material
Drive System
Control System
Blade Design
Use of high-efficiency permanent magnet materials Neodymium-Iron-Boron, increasing motor efficiency.
Using the new generation IE4 permanent magnet synchronous brushless motor
The frequency conversion control box can control the speed more accurately.
Utilize aerodynamic designs to ensure efficient airflow and reduce noise levels
Size Information
Parameters

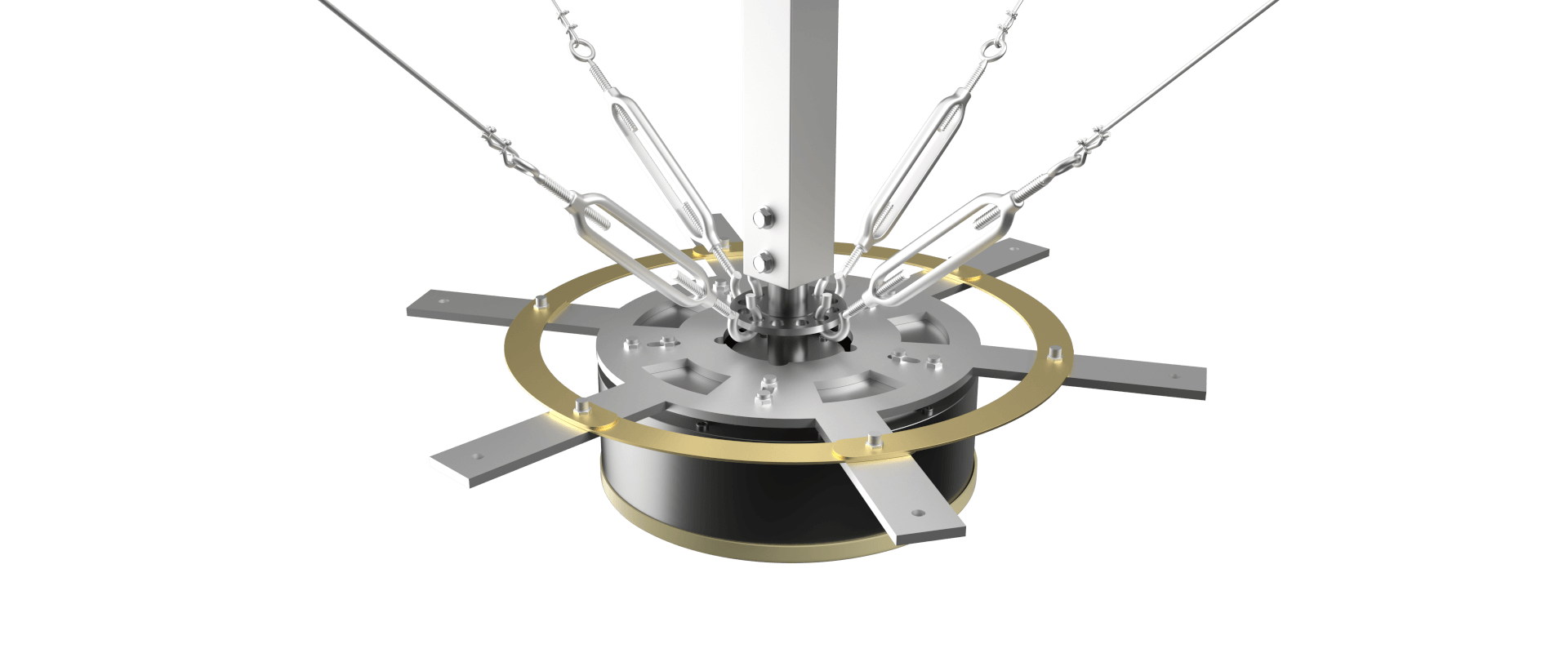

Main Components

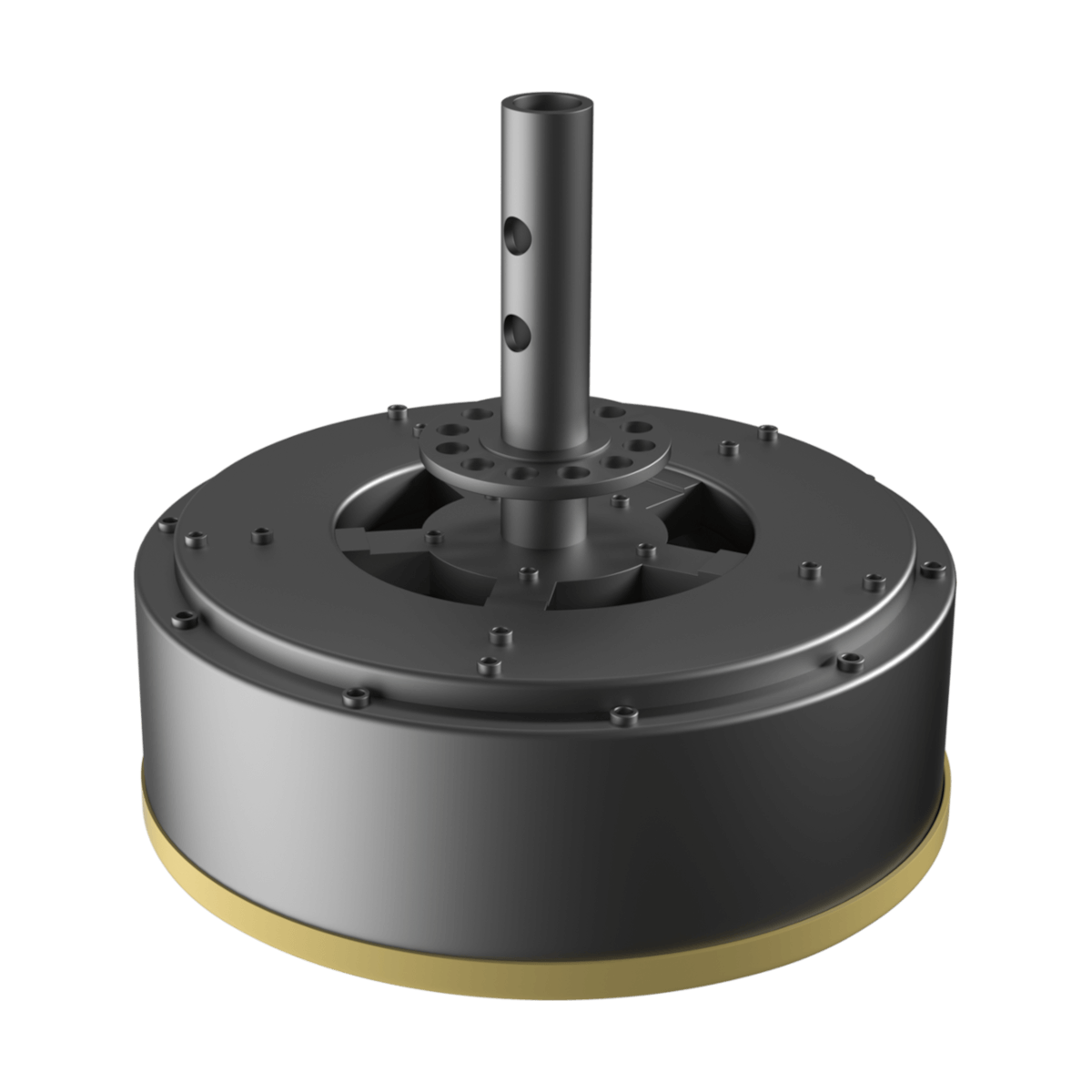

1. New generation IE4 high-energy PMSM (Permanent Magnet Synchronous Motor) provides more performance at lower power consumption and saves electricity.
2. Due to their construction and operating principles, PMSM generally have a longer service life and higher reliability than conventional motors.
3. PMSM are generally smaller and lighter than conventional motors of equivalent power. This makes ceiling fan design more flexible and easier to install.
4. Due to its high efficiency, PMSM generates less heat while operating, helping to reduce cooling requirements and extend motor life.
Drive System
1. Optimized rotor and stator structures ensure that the rotor and stator are designed to minimize energy loss and improve efficiency.
2. Lightweight design, few parts, convenient and easy installation.
3. Including overload protection, short circuit protection and other safety measures to ensure user safety.
4. Aerodynamic optimization, the blade design considers aerodynamics to provide maximum air volume and minimum noise.
5. Choose lightweight and durable materials to reduce the burden on the motor and extend its service life.

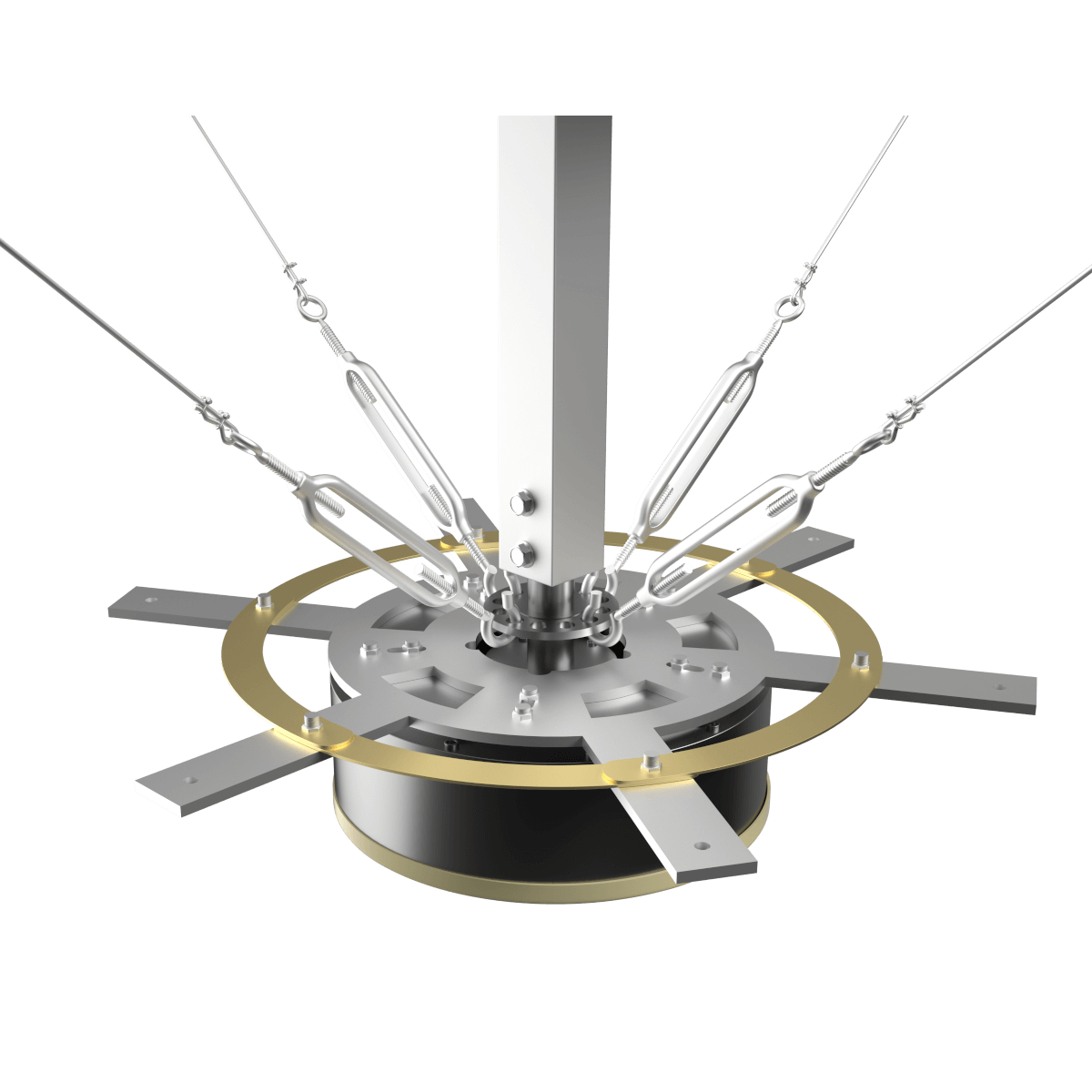

Design

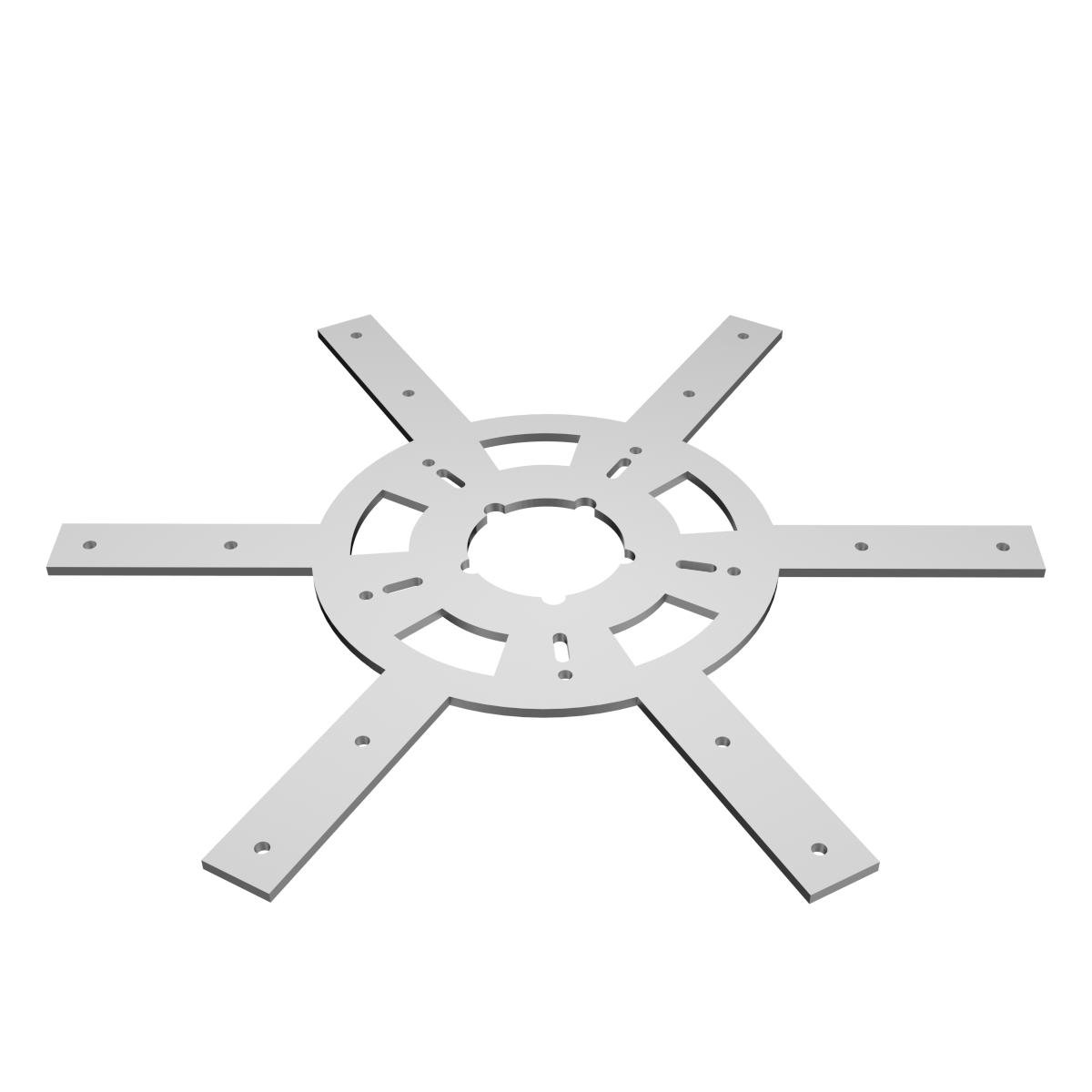

1. Well-designed chassis wheel can effectively absorb and reduce vibrations generated during operation and reduce the impact on the suspended ceiling.
2. The chassis wheel provides the main support point of the ceiling fan, ensuring the stability and safety of the ceiling fan during operation.
3. Designed for ease of installation, making the installation process of ceiling fans easier and faster
Chassis Wheel

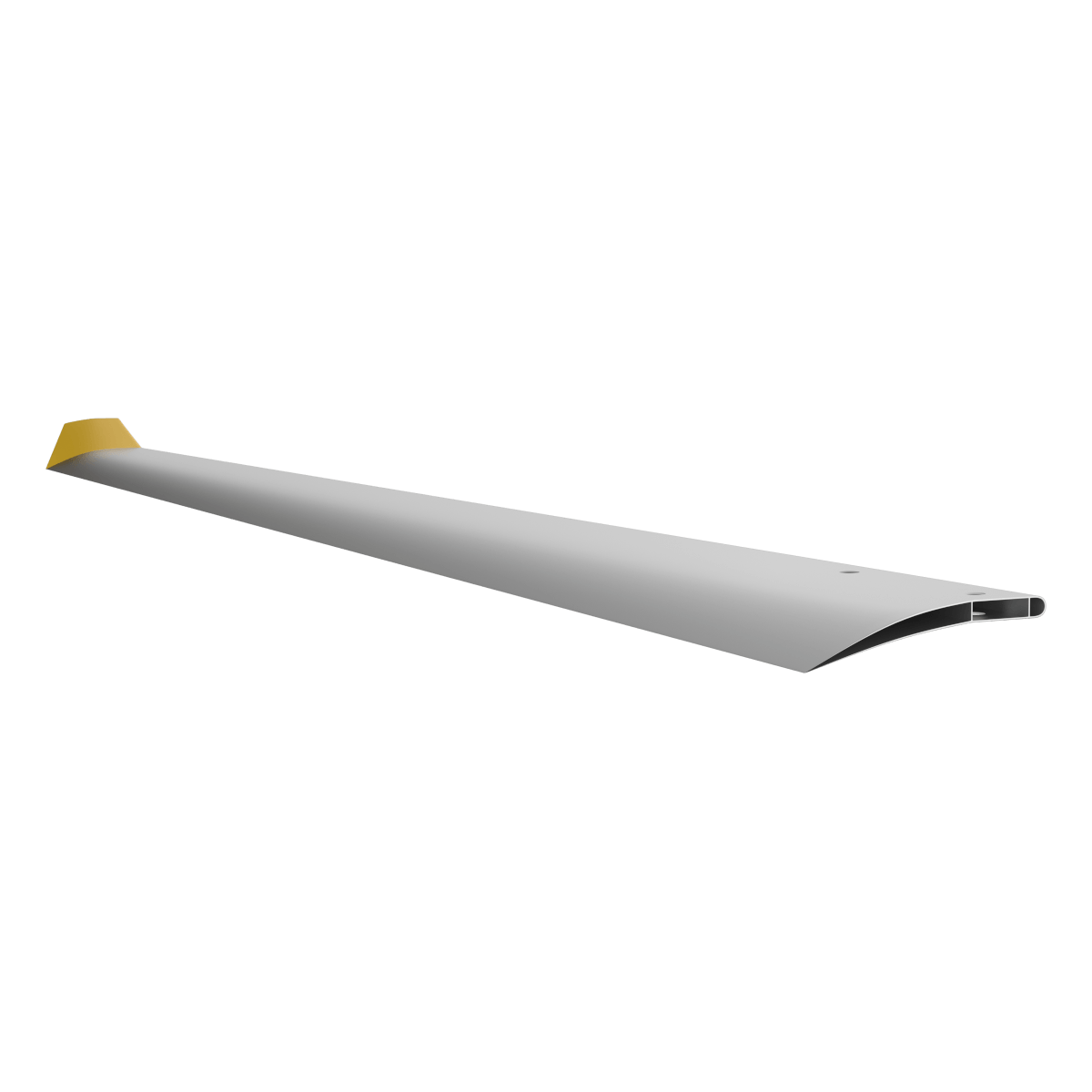

1. Simulated Airfoil-Shaped Fan Blades with High-performance aluminum alloy material.
2. Wing-shaped fan blades ensure the fan’s effectiveness.
3. Built-in reinforcement, split rib and full rib combination.
Airfoil-Shaped Fan Blades

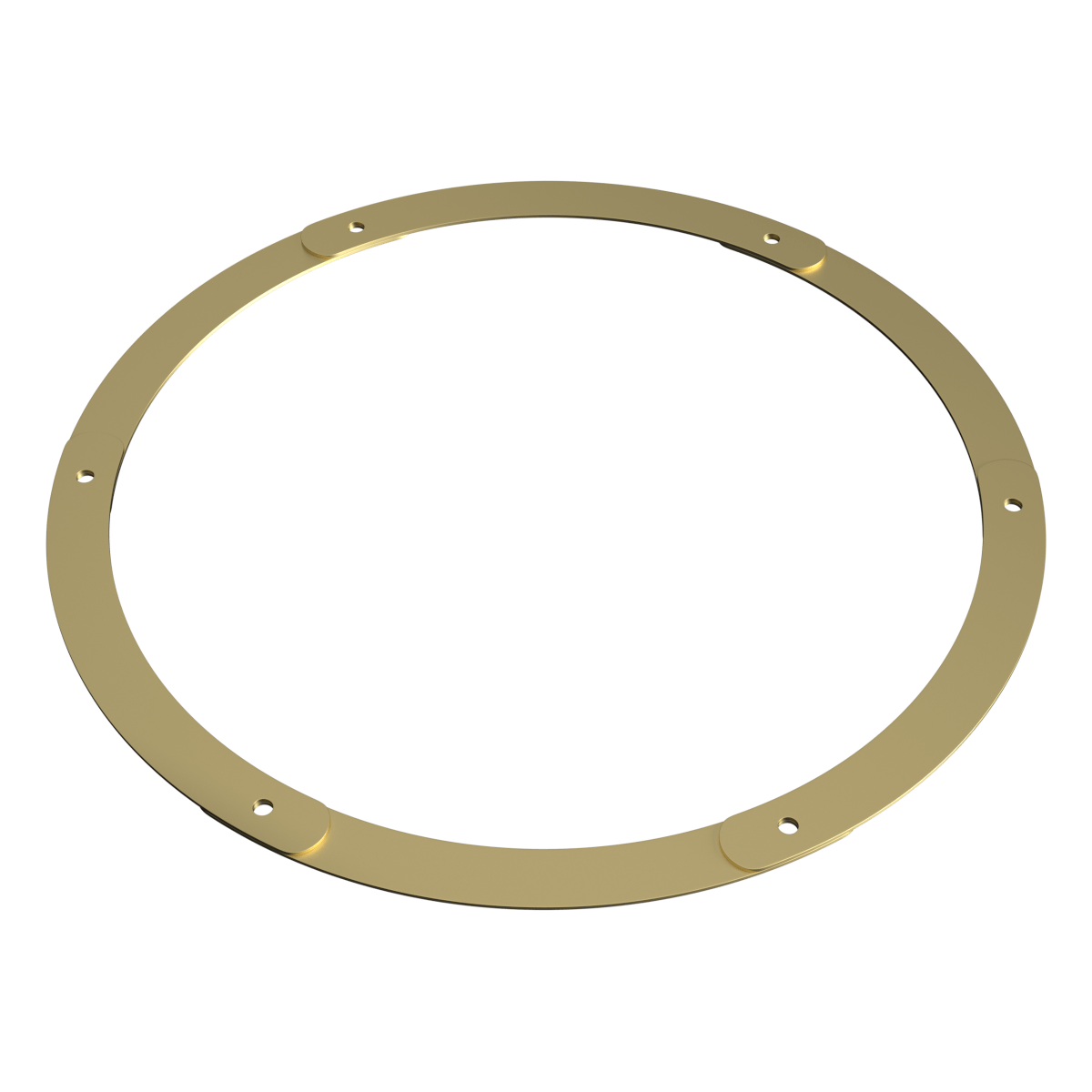

1. Independently designed to prevent falling, scattering, and shaking, and various other structures.
2. Ensure tolerances and dynamic balance are within the normal range.
3. 20-year reliable lifespan design.
Secure Fixing Ring
We have an experienced engineering team on electricity, machanism and architecture who will provide the most reasonable installation plan for different structures according to stress analysis, and can install fans for qualified structures.
We all know that installation is a very vital process, so during it, strict norms & installation standards and our profession must eliminate all your doubts.

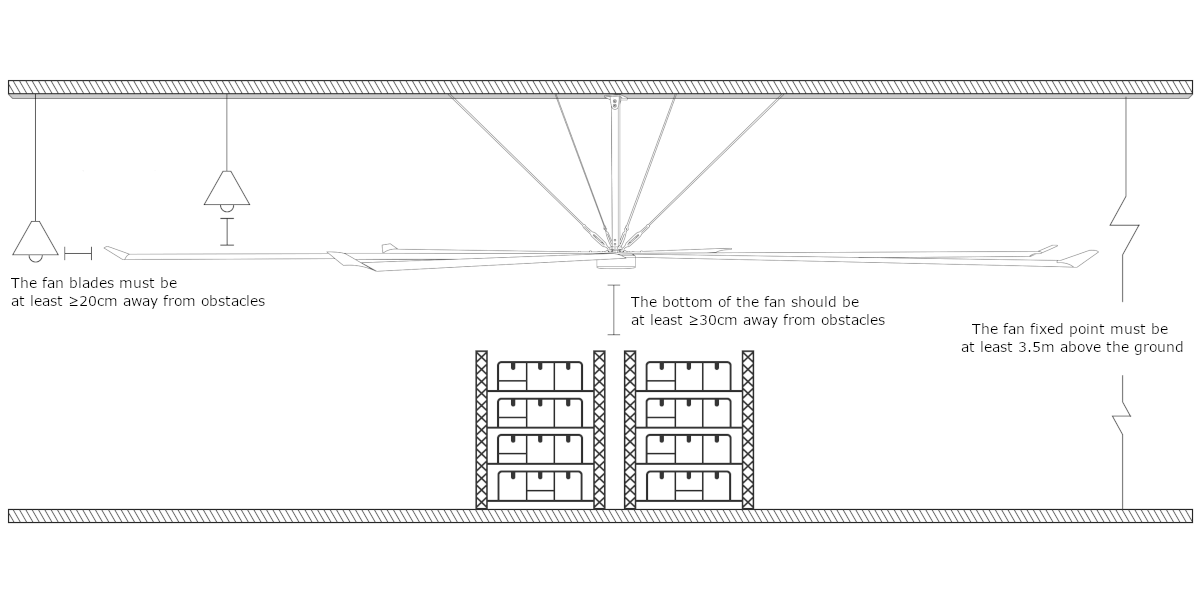

Installation
Application
FAQs
Are your ventilation and cooling systems suitable for large industrial areas?
Yes, our systems are designed to provide efficient airflow and temperature control in large industrial spaces, ensuring a comfortable working environment.
Can your equipment be customized to specific facility requirements?
Absolutely, we offer customization services to tailor our ventilation and cooling solutions to meet the unique needs of your facility.
How energy-efficient are your ventilation and cooling products?
Our products are designed with energy efficiency in mind, utilizing advanced technologies to reduce power consumption while maintaining optimal performance.
Do you provide installation and maintenance services?
Yes, we provide comprehensive installation and maintenance services to ensure your ventilation and cooling systems operate at peak efficiency.
What kind of support can I expect after purchasing your product?
We offer ongoing customer support including operational training, technical assistance, and a warranty for our products.
What types of environments are your ventilation and cooling systems best suited for?
Our systems are versatile and ideal for a range of environments, from manufacturing plants and warehouses to commercial complexes and agricultural facilities. They are designed to adapt to different climatic conditions and space sizes.
Construction Appointment
1
Submission of Project Appointment
2
Send the Drawings
3
Design Scheme
Make a Project appointment by contacting customer service or sending an email to us.
Please send the measured drawings to customer service, and be sure to provide accurate measurements.
We will propose a solution within 3-14 days. Please be patient and wait for our response.
4
Engineering Quotation
5
On-site Construction
6
After-Sales Service
After both parties agree on the proposed solution, we will send the engineering quotation. Please pay attention to check and review it.
Once the equipment is ready, construction team will promptly proceed with the installation and commissioning process.
If you encounter any issues during usage, please consult our online customer service for assistance.
Send us a message
Get Your Custom Solution Today!
Our dedicated team of engineers specializes in providing tailored ventilation and cooling solutions that cater to your unique needs. With cutting-edge technology and a commitment to sustainability, we ensure your spaces stay cool, energy-efficient, and comfortable.
Connect with us for a personalized consultation and discover how we can transform your environment. Our attention to detail and customer-centric approach guarantee a seamless experience from design to installation.
Don't let challenges slow you down. Send us a message now, and let's create the ideal solution for your space!
At HENGSHUANGDA®, we provide more than just cooling and ventilation products, we deliver tailored environments for both indoor and outdoor spaces. Our proficiency is in developing customized solutions that cater to your distinct needs, encompassing a wide range of products from individual units to complete ventilation systems. Our engineering team blends advanced technology with innovative designs to create efficient, reliable solutions.
Whether you need a specialized cooling unit for a unique indoor area or ventilation system for outdoor use, our comprehensive services include consultation, design, installation, and maintenance. Trust us to maintain the perfect temperature and air quality in your spaces.
For a clear vision of your custom project, our 3D rendering services bring your prospective solution to life before installation. Rely on us for a thorough consultation, precise design, and meticulous maintenance services. With HENGSHUANGDA®, experience a new dimension in indoor cooling and ventilation solutions.
Products
Contact Us
- PHONE: +86 191 2421 8180
- FAX: +020 3999 0969
- WHATSAPP: +86 191 2421 8180
- WECHAT: +86 191 2421 8180
- EMAIL: info@hengshuangda.com
- LOCATION: GUANGZHOU, CHINA
- Copyright © 2024 HENGDA. All rights reserved.

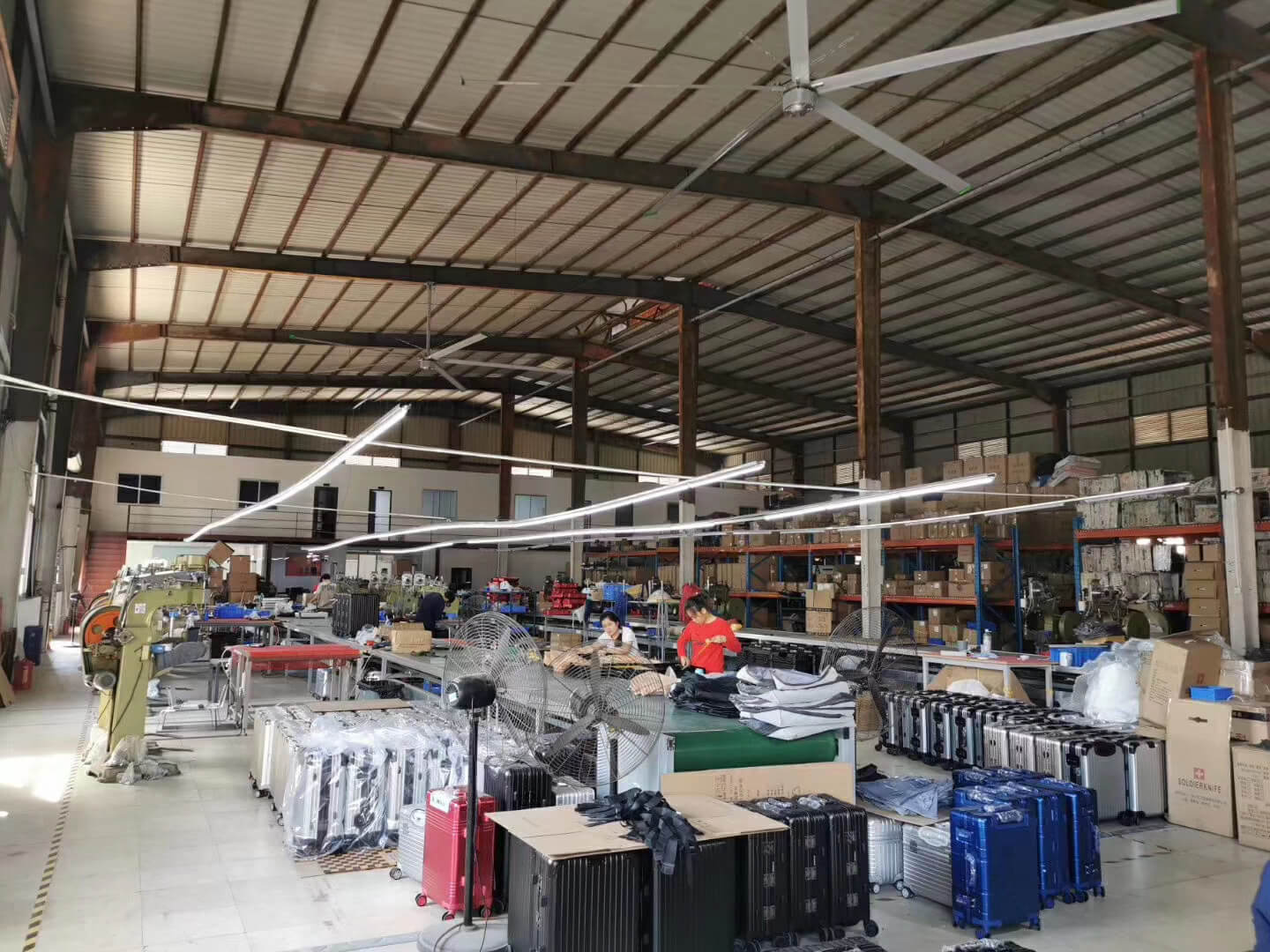

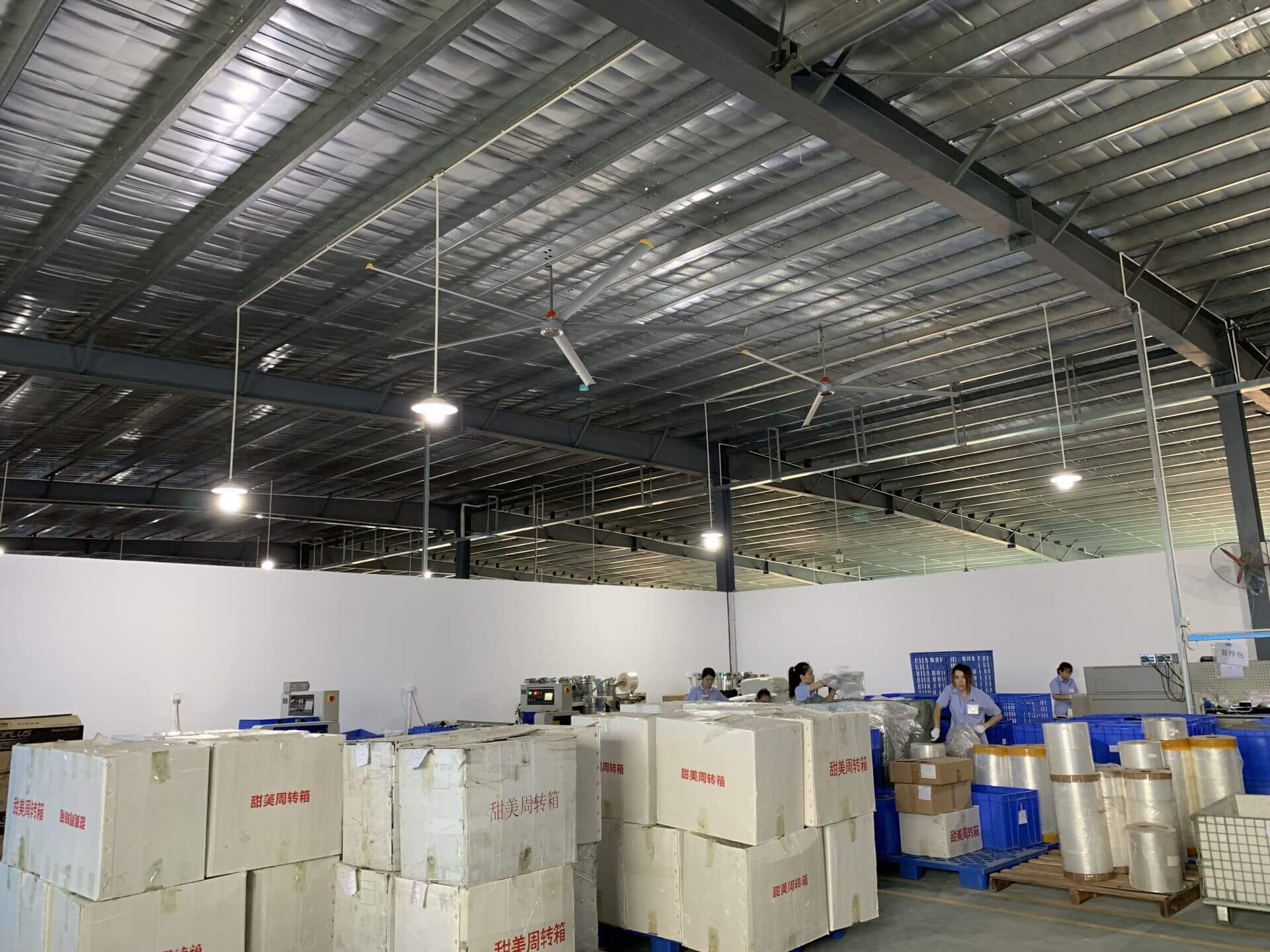

Production Line Installation Case
IE4 permanent magnet ceiling fans are installed in semi-open production lines to establish air circulation and make the space cooler.
Heat Source Cooling Case
IE4 permanent magnet ceiling fan is installed above the heat source to locally cool down the mechanical equipment.

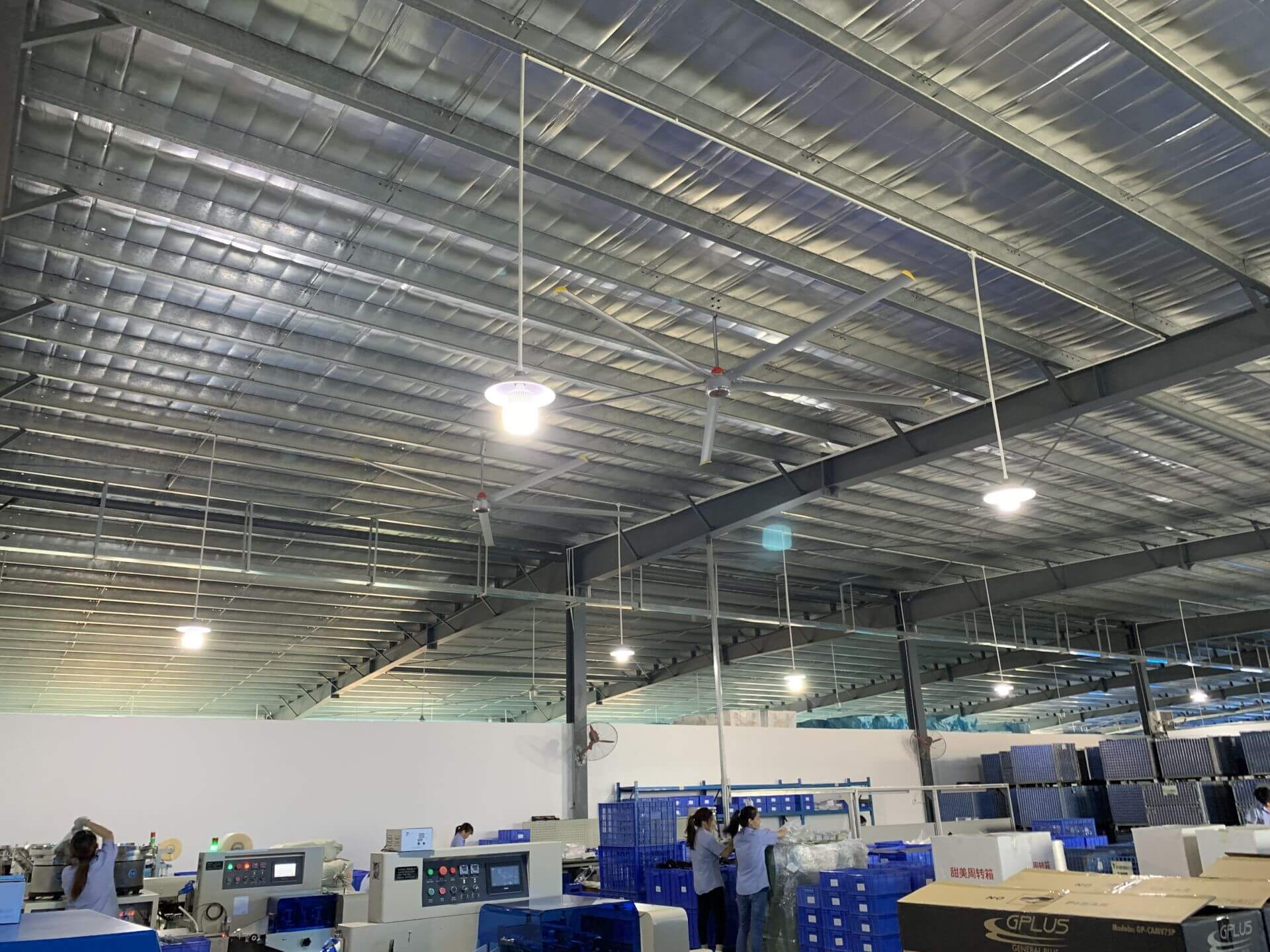

Warehouse Installation Case
Install ceiling fans to provide airflow in tight spaces within the warehouse.
6m High Flat-Floor Factory Installation Case
Ceiling fans can also be installed in flat-floor factory workshops with a height of 5-7m to increase air circulation.
