| Model | A(mm) | B(mm) | C(mm) | D(mm) | Rated Power | Voltage/Frequency | AirFlow | Noise | Blade | MAX(RPM) | Diameters | Weight |
| HSD-Y1900 | 2080 | 630 | 1970 | 260 | 950W | 110-415V/50-60Hz | 1200m3/min = 42377 CFM | ≤48 dB | 6 pcs | 280 | 1.9M(74inch) | 137.1kg |
| HSD-Y1500 | 1750 | 630 | 1650 | 260 | 950W | 110-415V/50-60Hz | 720m3/min = 25426 CFM | ≤48 dB | 6 pcs | 400 | 1.5M(57inch) | 103kg |
| HSD-Y1200 | 1330 | 575 | 1380 | 260 | 600W | 110-415V/50-60Hz | 420m3/min = 14832 CFM | ≤50 dB | 5 pcs | 450 | 1.2M(47inch) | 70kg |
| HSD-Y900 | 970 | 550 | 1100 | 260 | 500W | 110-415V/50-60Hz | 280m3/min = 16800 CFM | ≤50 dB | 5 pcs | 700 | 0.9M(37inch) | 57.2kg |

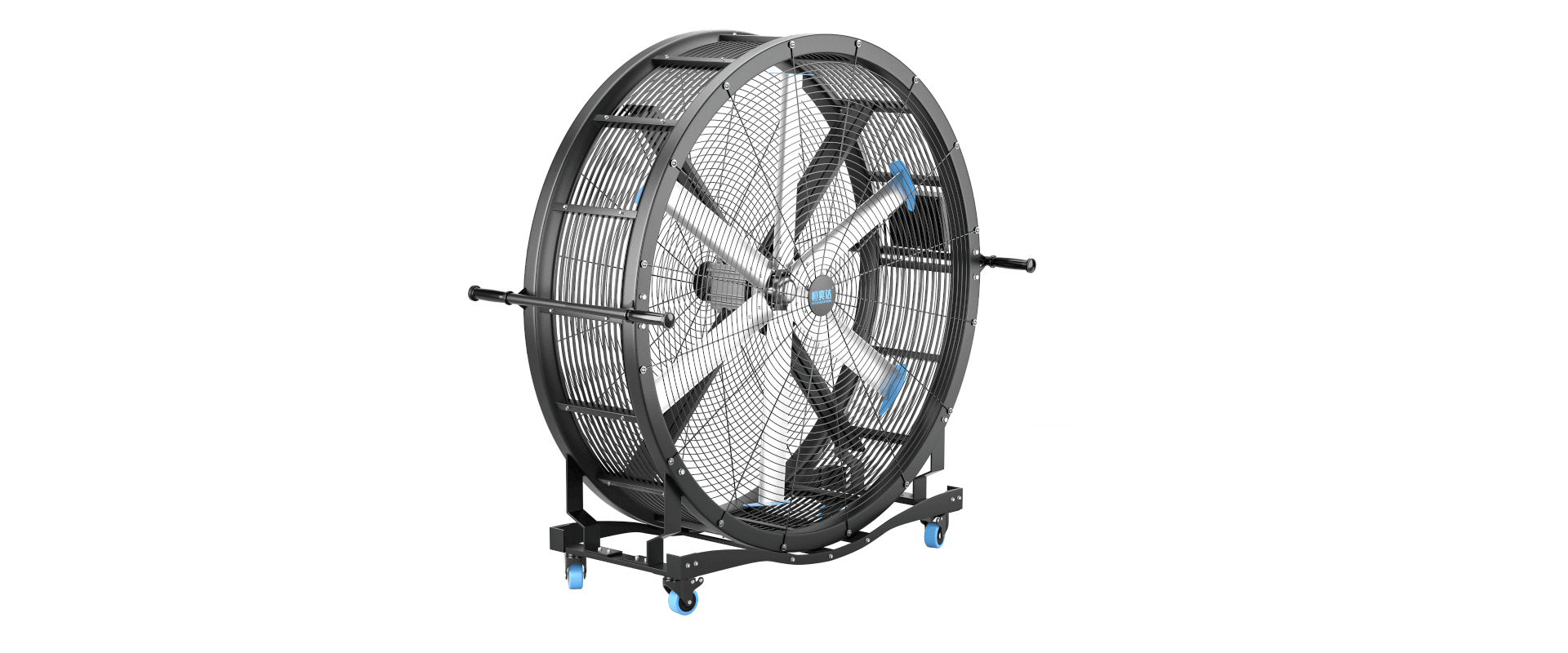

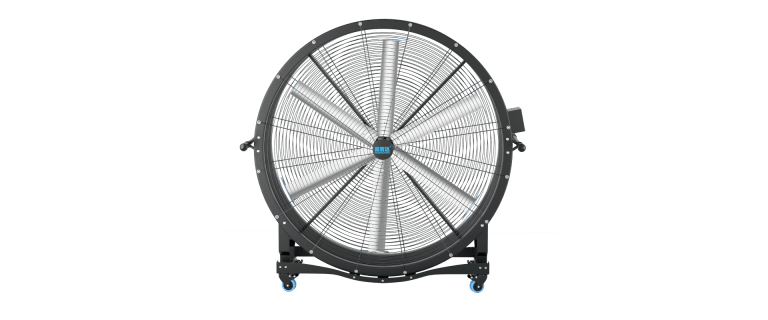

Six / Five Fan Blades Portable Drum Fan
The Portable Drum Fan is a highly efficient ventilation and cooling equipment, specifically designed for factory and workshop environments. It features a flexible mobile design, allowing for quick adjustments in position according to work needs, and introduces fresh cold air to create circulation that expels hot air outdoors.
Application
Industrial
Commercial
Indoor & Outdoor
Manufacturing Workshop, Warehouses and Logistics Centers
Gyms and Sports Centers, Large Retail Stores and Supermarkets
Indoor Sports Arenas, Open-air Markets, Construction Sites
Feature
Mobility
Multipurpose
Efficiency
Maintain
Equipped with pulleys, easy to move between different work areas, plug and play.
Suitable for a variety of environments. In addition to cooling, it can also be used for air quality control, such as removing smoke, dust, etc.
Provides efficient cooling while consuming less energy.
Simple design allows for daily cleaning and maintenance, extending service life.
Parameters
Main Components
1. Silent and high-quality three-phase asynchronous motor.
2. Motor housing is made of aluminum alloy through diecasting.
3. Reduces temperature rise and increases motor lifespan.
Drive System
1. It adopts frequency conversion controller to accurately control the speed.
2. Controller can smoothly adjust the speed, reducing start-stop impact and extending equipment lifespan.
3. Variable frequency speed regulation is suitable for different working conditions and application scenarios.
4. The speed can be reduced under low load or light load conditions, thereby reducing energy consumption and achieving energy saving goals.
Control System
1. Trailing edge of the fan blades adopts the same silent airfoil tips as HVLS fans.
2. Blade profile is calculated using simulation software to obtain the optimal cross-section.
3. Connected with reinforced aluminum alloy structures to prevent blade detachment.
4. Made of magnesium-aluminum alloy material, which provides excellent aerodynamic performance.
Airfoil-Shaped Fan Blades
1. High-tensile steel wire protective net, coated with anti-rust paint.
2. Prevent foreign objects or fingers from entering the working range of the fan to prevent injury to people.
Safety Components
1. Easily move the fan by gently pushing it.
2. The caster are equipped with a brake device, securely locking the position.
Caster
Application
FAQs
Are your ventilation and cooling systems suitable for large industrial areas?
Yes, our systems are designed to provide efficient airflow and temperature control in large industrial spaces, ensuring a comfortable working environment.
Can your equipment be customized to specific facility requirements?
Absolutely, we offer customization services to tailor our ventilation and cooling solutions to meet the unique needs of your facility.
How energy-efficient are your ventilation and cooling products?
Our products are designed with energy efficiency in mind, utilizing advanced technologies to reduce power consumption while maintaining optimal performance.
Do you provide installation and maintenance services?
Yes, we provide comprehensive installation and maintenance services to ensure your ventilation and cooling systems operate at peak efficiency.
What kind of support can I expect after purchasing your product?
We offer ongoing customer support including operational training, technical assistance, and a warranty for our products.
What types of environments are your ventilation and cooling systems best suited for?
Our systems are versatile and ideal for a range of environments, from manufacturing plants and warehouses to commercial complexes and agricultural facilities. They are designed to adapt to different climatic conditions and space sizes.
Construction Appointment
1
Submission of Project Appointment
2
Send the Drawings
3
Design Scheme
Make a Project appointment by contacting customer service or sending an email to us.
Please send the measured drawings to customer service, and be sure to provide accurate measurements.
We will propose a solution within 3-14 days. Please be patient and wait for our response.
4
Engineering Quotation
5
On-site Construction
6
After-Sales Service
After both parties agree on the proposed solution, we will send the engineering quotation. Please pay attention to check and review it.
Once the equipment is ready, construction team will promptly proceed with the installation and commissioning process.
If you encounter any issues during usage, please consult our online customer service for assistance.
Send us a message
Get Your Custom Solution Today!
Our dedicated team of engineers specializes in providing tailored ventilation and cooling solutions that cater to your unique needs. With cutting-edge technology and a commitment to sustainability, we ensure your spaces stay cool, energy-efficient, and comfortable.
Connect with us for a personalized consultation and discover how we can transform your environment. Our attention to detail and customer-centric approach guarantee a seamless experience from design to installation.
Don't let challenges slow you down. Send us a message now, and let's create the ideal solution for your space!
At HENGSHUANGDA®, we provide more than just cooling and ventilation products, we deliver tailored environments for both indoor and outdoor spaces. Our proficiency is in developing customized solutions that cater to your distinct needs, encompassing a wide range of products from individual units to complete ventilation systems. Our engineering team blends advanced technology with innovative designs to create efficient, reliable solutions.
Whether you need a specialized cooling unit for a unique indoor area or ventilation system for outdoor use, our comprehensive services include consultation, design, installation, and maintenance. Trust us to maintain the perfect temperature and air quality in your spaces.
For a clear vision of your custom project, our 3D rendering services bring your prospective solution to life before installation. Rely on us for a thorough consultation, precise design, and meticulous maintenance services. With HENGSHUANGDA®, experience a new dimension in indoor cooling and ventilation solutions.
Products
Contact Us
- PHONE: +86 191 2421 8180
- FAX: +020 3999 0969
- WHATSAPP: +86 191 2421 8180
- WECHAT: +86 191 2421 8180
- EMAIL: info@hengshuangda.com
- LOCATION: GUANGZHOU, CHINA
- Copyright © 2024 HENGDA. All rights reserved.

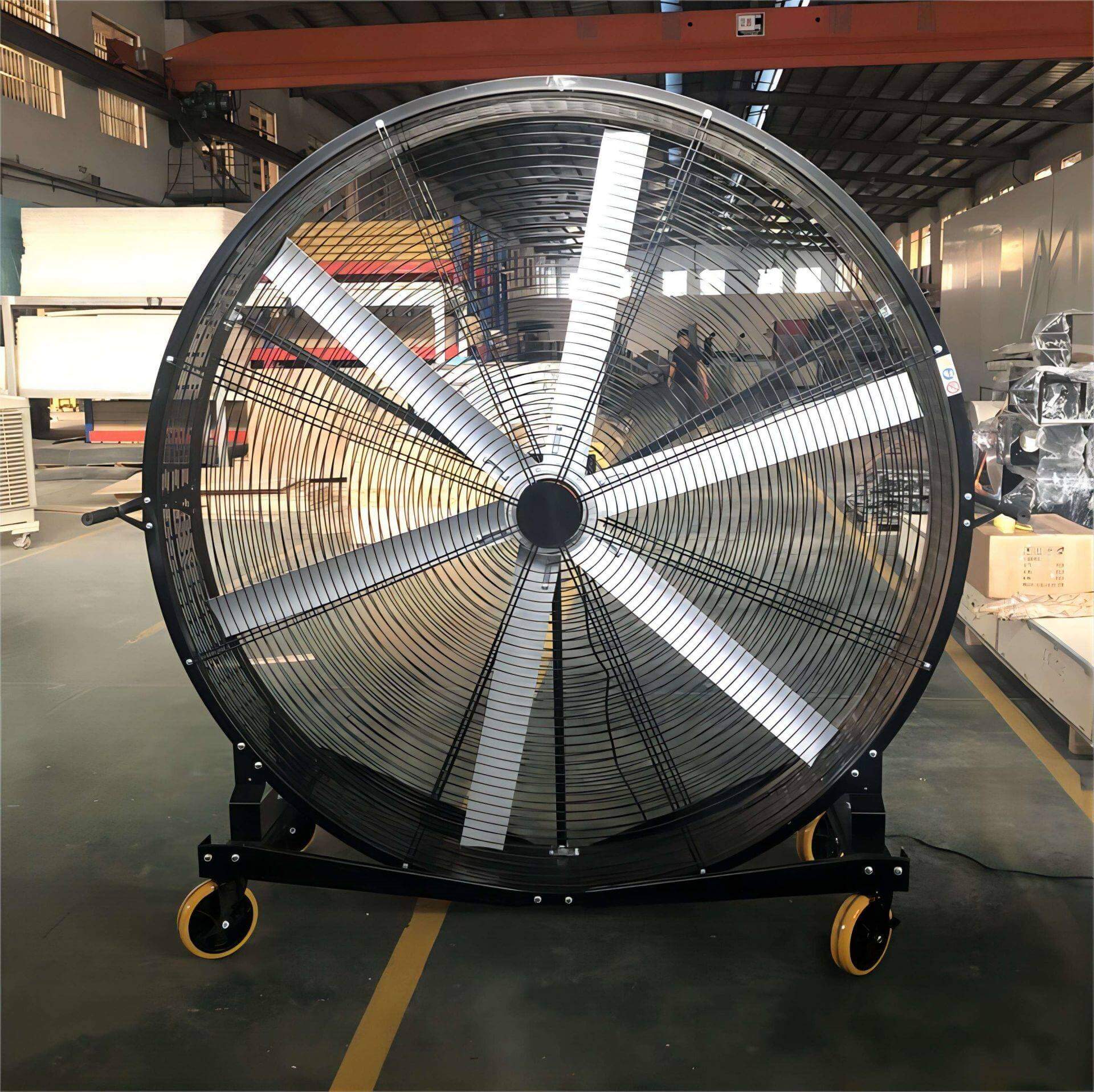

Factory Case
Fans are placed on factory assembly lines to cool down workers.

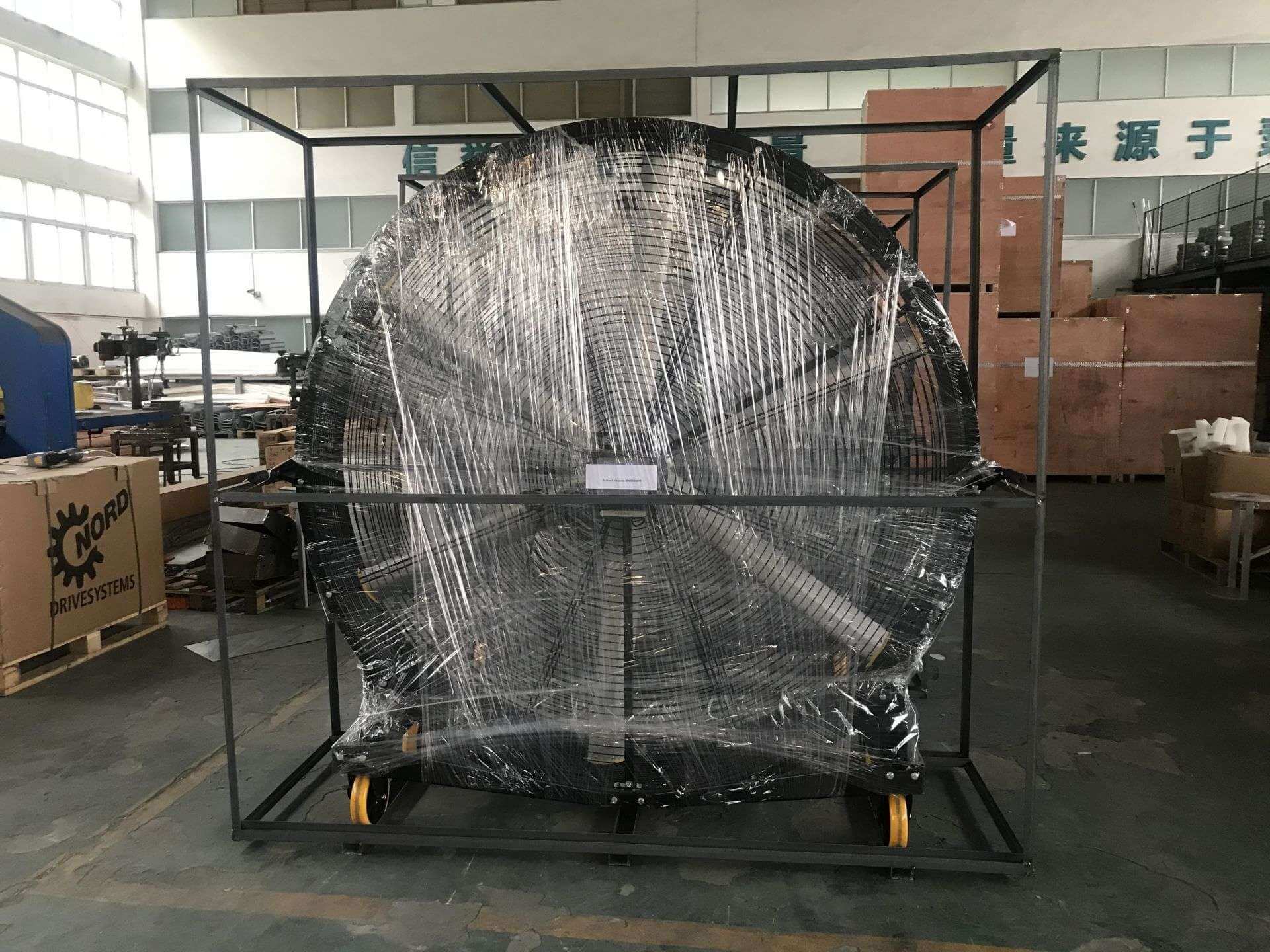

Install Bracket and Package
After installing the protective bracket on the fan, prepare it for shipping.
Wooden Package
After taking the fan apart, place it in a wooden box and prepare it for shipping.

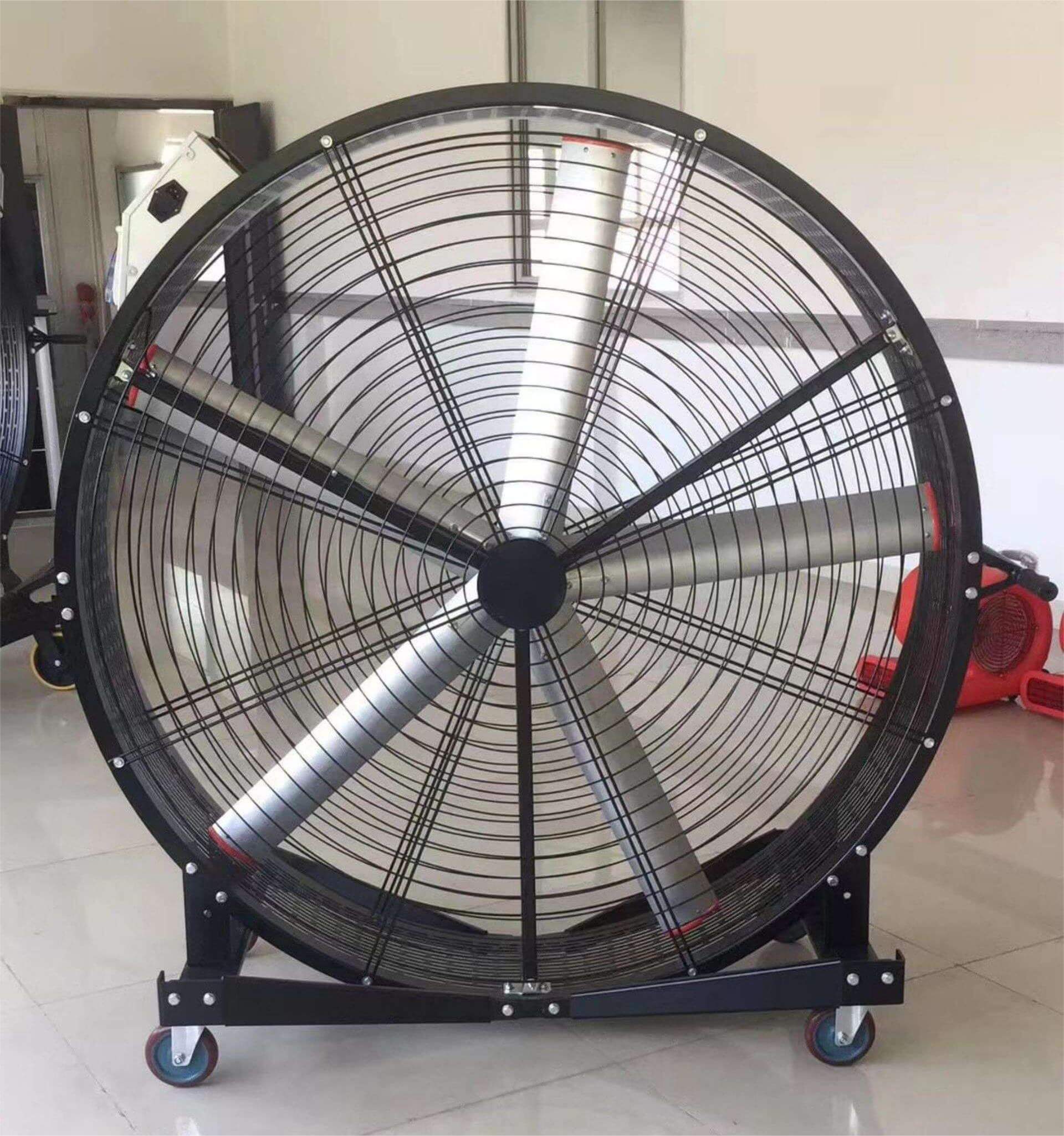

Indoor Case
